| Model Number: | M6-M16 |
|---|---|
| Packaging Details: | carton packaging, outer jacket woven bag, plastic bag, fumigation free European pallet, or customized. |
| Delivery Time: | 2 weeks-1 month |
| Material: | A3 Carbon Steel, Stainless Steel | Type: | Steel Beam Clamp |
|---|---|---|---|
| Specification And Model: | According To Customer Requirements | Processing Customization: | Yes (processing With Drawings, Samples And Materials) |
| Color: | Galvanized Color, Stainless Steel Natural Color (can Be Customized According To Customer Requirements) | Anti Corrosion Treatment/surface Treatment: | White Zinc Plating, Color Zinc Plating, Hot Galvanizing, Hot Dip Zinc Plating, Nickel Plating, Chromium Plating, Kromi, Blackening, Dacromet, Teflon, Painting, Spraying, Polishing |
| Executive Standards: | Standard For Fabricated Pipe Hangers | Coating Thickness: | 50-80UM |
| Bolt Performance Grade: | 4.8,5.8,8.8,10.8,12.8 | ||
| High Light: | Electrical Wide Flange Beam Clamps,Steel Wide Flange Beam Clamps,zinc plating Flange Beam Clamps |
||
It is used for hoisting of light load on steel structure without drilling and welding, saving labor and time. The installation is convenient and fast

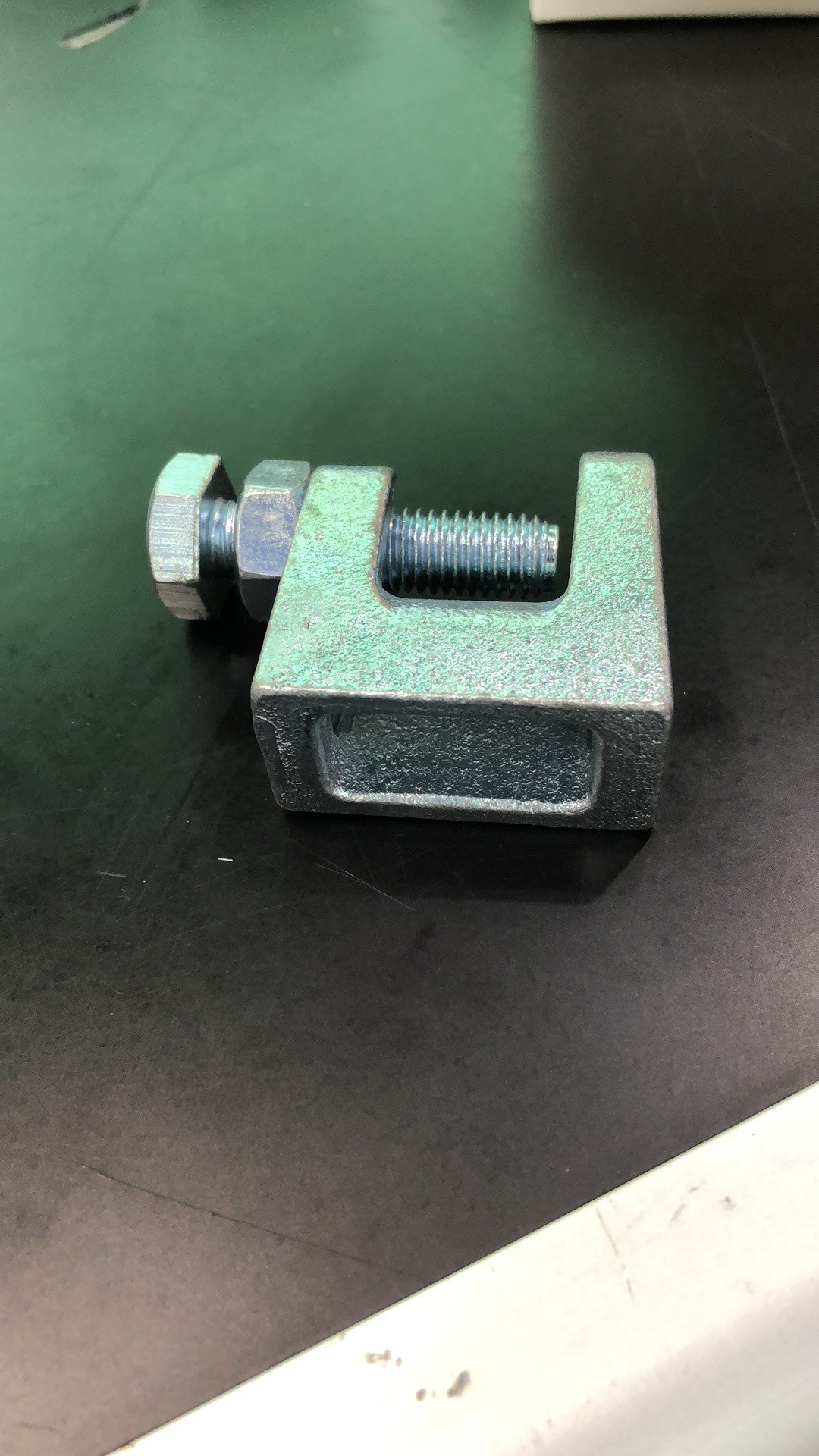

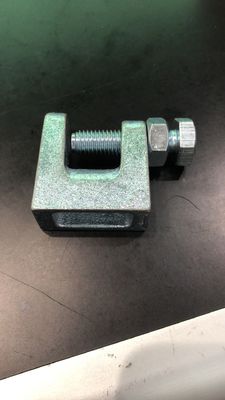

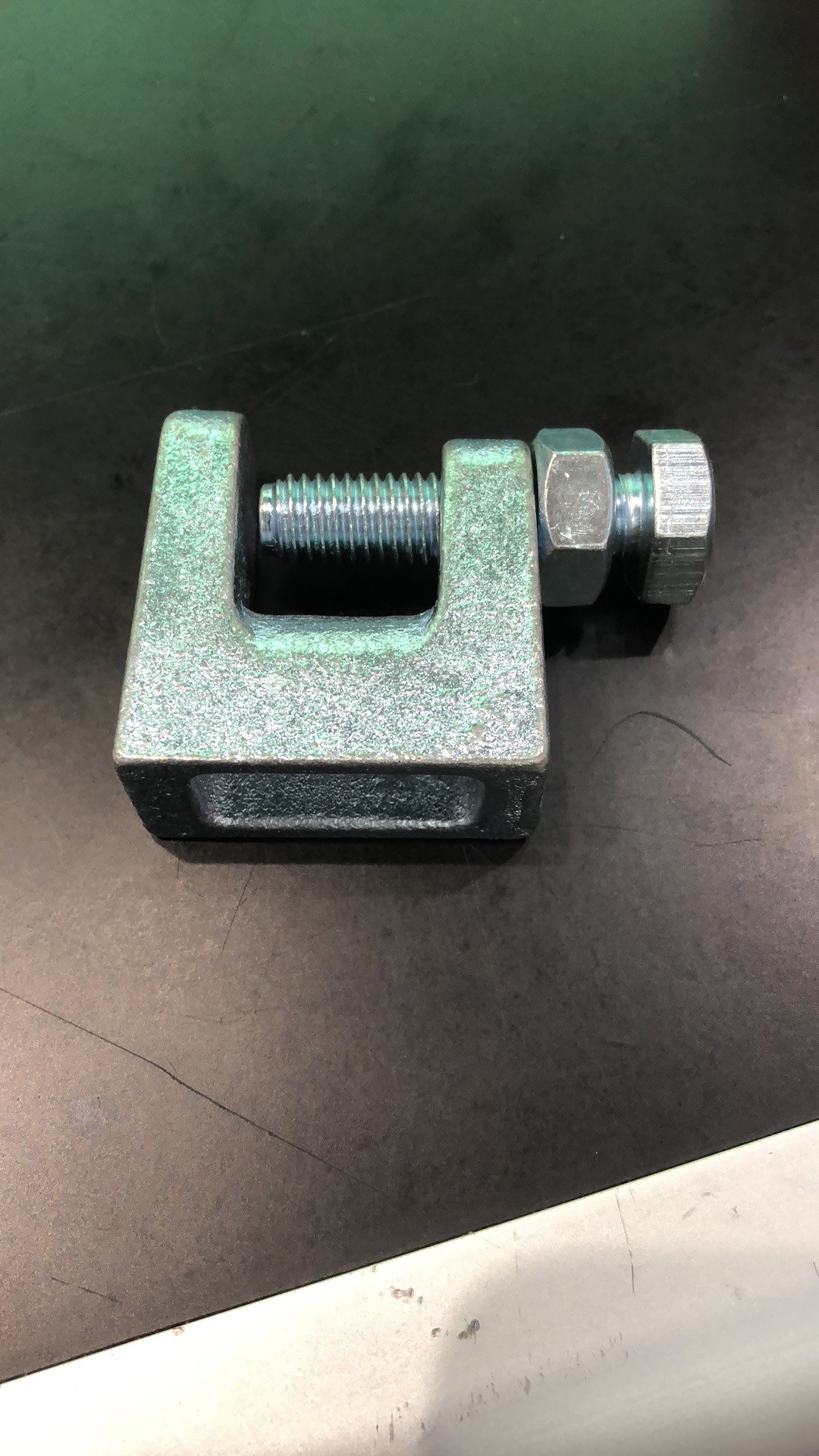

Cast iron tiger mouth clamp Tiger mouth card Features: This product is convenient to use, with complete specifications and excellent quality
Application fields: railway, transportation system engineering, automatic control equipment, power plant, chemical industry, power transmission and distribution system, communication system, ships, buildings, steel structure hanger series in plants and houses.
Purpose: It is used for fixing I-beam, C-beam and channel steel.
Usage: easy to use and install.
Precautions: It should be stored in a dry and ventilated indoor environment. When it is placed outdoors, please cover it with canvas to avoid rain.
Malleable cast iron (malleable iron, malleable iron) is called "tiger clamp", "tiger clamp", "beam clamp", etc. It is used for pipe hoisting.
The welding free drilling installation of profile steel on the steel structure is matched with the full thread bolt installation. Fixable wire tube, applicable to various angles and T-shaped steel beams
| OPEINGING DIAMETER | BORE DIAMETER |
| 18MM | 8MM |
| 20MM | 10.5MM |
| 25MM | 12.5MM |
| 35MM | 14MM |
| 45MM | 15MM |
